Car seat assembly line



Our car seat assembly line is a customized automated production system built for mass manufacturing of automotive seats. This modular double-speed chain conveyor system helps auto parts factories complete seat frame assembly, foam cushion fitting, fabric or leather upholstery mounting and finished seat performance testing.

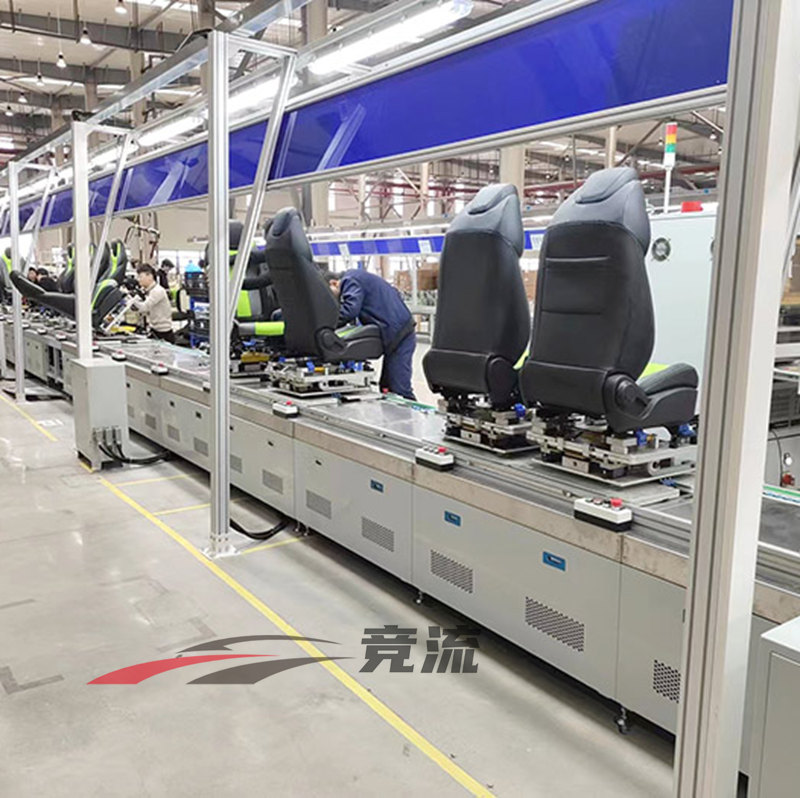

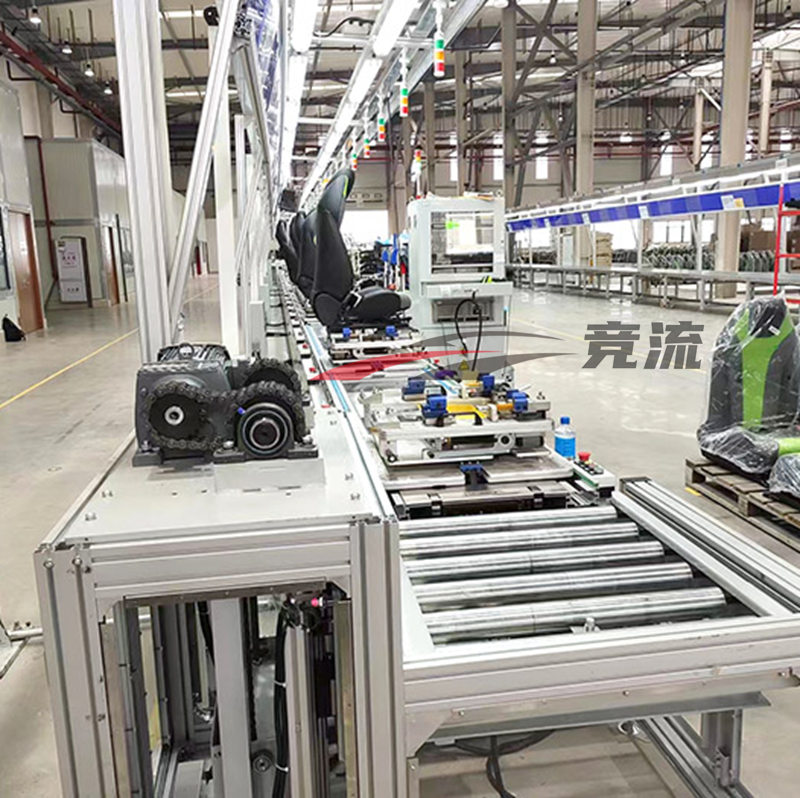

This factory workshop photo shows a long double-speed chain assembly line with parallel conveying tracks. The metal conveyor framework is fitted with green guide strips and chain transfer units, enabling smooth, steady transport of semi-finished seats between different workstations. Multi-layer transfer structures and lifting mechanisms are integrated on the line to shift workpieces between production layers, optimizing workshop floor layout. The heavy-duty metal frame ensures stable long-run operation for continuous automotive seat manufacturing.

Production Line Overview & Process Composition

This production system covers the complete workflow for automotive seat manufacturing: seat frame feeding, frame welding inspection, spring and foam assembly, cushion and backrest upholstery fitting, side panel mounting, slide rail and adjustment mechanism installation, function testing and final finished seat quality audit. Every workstation is customized to meet automotive industry standards for safety and assembly precision.

Seat Frame & Internal Structure Assembly

At the core workstation, workers install metal seat frames, slide rails, recliners and internal spring components. The double-speed chain conveyor delivers frames to each station at controlled production tact. Operators assemble adjustment mechanisms and locking parts, verifying smooth movement of backrest and height adjustment functions.

Foam & Upholstery Fitting

Workers mount foam cushions and fit fabric or leather upholstery covers onto seat frames. Modular station layout creates ample working space for trimming and wrapping operations, improving fitting quality and reducing wrinkles in seat covers.

Accessories & Electrical Component Mounting

Side trims, plastic covers and electrical adjustment parts are installed in sequence. Standardized assembly procedures ensure consistent fitment of all auxiliary components for different seat variants.

Finished Seat Functional Testing

All assembled seats go through dedicated function testing. Inspectors check slide rail travel, reclining action, heating function and locking reliability. Defective products are sent to rework stations before packing and shipment.

Core Advantages of Car Seat Assembly Line

Stable Double-Speed Chain Conveying System

The double-speed chain transport design is ideal for bulky automotive seat assemblies. It supports continuous workpiece transfer and can integrate lifting and diverting units to realize multi-layer production arrangement, maximizing factory space utilization.

Modular & Flexible Station Layout

The production system adopts modular workstation construction. It can be reconfigured to assemble seats for passenger cars, SUVs, MPVs and commercial vehicles, supporting mixed production of multiple seat models to adapt to changing vehicle development cycles.

Reliable Intelligent Control & Traceability

Built-in intelligent control systems manage production rhythm and equipment status. Production data can be recorded for each finished seat, supporting full-process traceability to meet strict automotive quality management requirements.

Customizable Layout According To Workshop

We tailor the line layout to match the customer’s factory building. Parallel lines, branch transfer and lifting units can be added to fit existing workshop space and optimize material flow.

Full Lifecycle Technical Support

We deliver complete turnkey services including scheme design, equipment fabrication, on-site installation, commissioning and staff training. Remote monitoring and spare parts supply are available to keep the whole production system running steadily for the full equipment service life.

Main Assembly Workflow

Seat Frame Loading & Positioning Place the seat frame fixture on the double-speed chain conveyor.

Internal Mechanism Assembly Install slide rails, recliners, springs and supporting brackets.

Foam Padding & Upholstery Installation Fit foam cushions and mount fabric or leather seat covers.

Trim & Electrical Accessories Mounting Install plastic side panels, adjustment switches and wiring harnesses.

Finished Seat Function Test Verify sliding, reclining and other seat adjustment functions.

Final Quality Audit & Offline Complete visual inspection and functional review. Qualified seats are unloaded and packaged. Empty tooling circulates back for cyclic production.

Application Scope

• Mass assembly of passenger car seats, SUV and MPV seats
• Production line for commercial vehicle and special vehicle automotive seats
• Flexible mixed production systems for multiple car seat models
• Turnkey workshop construction for automotive interior component manufacturing
