Motorcycle engine assembly line



Our motorcycle engine assembly line is a customized automated manufacturing system built for mass production of motorcycle power units. This linear rail production system is widely used in motorcycle factories to complete engine assembly, precision torque fastening and finished engine performance testing.

This factory workshop photo shows a full motorcycle engine assembly line fitted with rotating positioning jigs. These yellow support fixtures securely hold engine casings and allow operators to rotate the engine freely, making component installation easier. Tall yellow cantilever jib cranes with electric hoists are installed along the line to lift heavy engine assemblies. The production layout adopts long linear guide rails, enabling workpieces to move smoothly between assembly stations. Safety guard frames separate each workstation to protect operators during continuous mass production.

Production Line Overview & Process Composition

This motorcycle engine assembly line supports the whole manufacturing workflow: engine block feeding, crankshaft installation, cylinder assembly, gasket fitting, precision torque tightening, auxiliary parts mounting, oil filling, engine running test and final quality inspection. All processes are optimized for motorcycle power assembly manufacturing to guarantee high assembly accuracy and consistent product quality.

Crankshaft & Engine Block Assembly

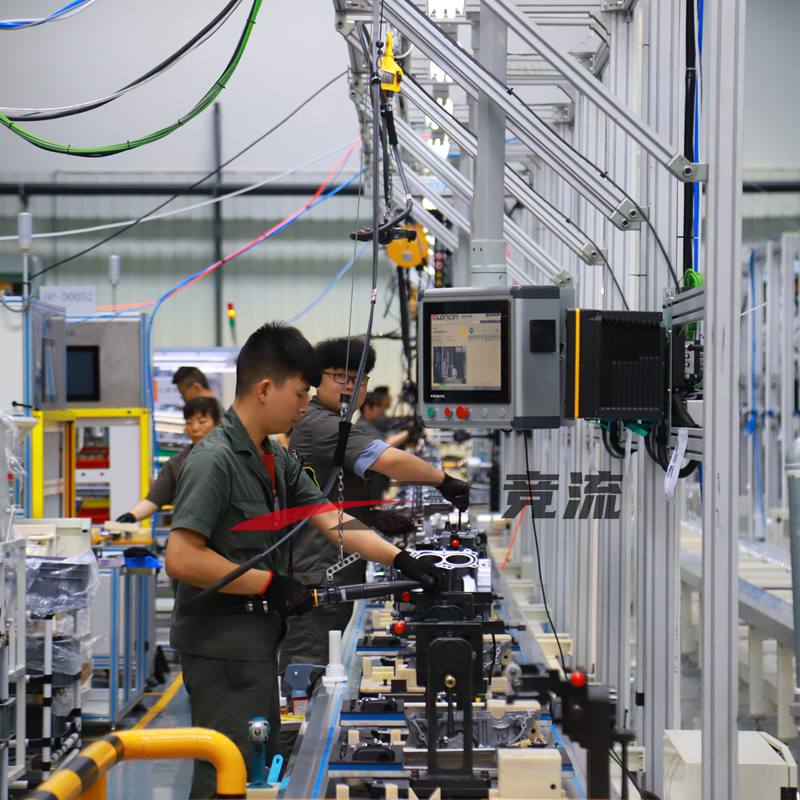

At the core workstation, operators load engine blocks and fit crankshaft assemblies. Rotatable positioning jigs hold the engine steadily for component installation. Intelligent torque tightening tools are used for standardized bolt fastening to maintain precise torque control and prevent assembly defects.

Cylinder & Auxiliary Component Fitting

Workers assemble cylinders, pistons, gaskets and valve components. The rotating fixture design allows easy access to all sides of the engine, greatly improving assembly convenience and reducing manual handling difficulty.

Lubricant Filling & Sealing Inspection

Engine oil is filled at dedicated stations. Technicians inspect all sealing surfaces and joints to eliminate oil leakage risks, ensuring reliable long-term operation of finished motorcycle engines.

Finished Engine Running Performance Test

After assembly, each engine undergoes bench running tests. Inspectors verify power output, noise level, vibration and sealing performance. Non-compliant units are transferred to rework stations for adjustment before packaging.

Core Advantages of Motorcycle Engine Assembly Line

Full-Process Integrated Assembly Workflow

This linear production layout enables continuous one-flow manufacturing from raw component feeding to finished engine offline. It reduces cross-factory material transportation, shortens production cycles and improves factory throughput for motorcycle power assemblies.

Rotatable Jig Design for Ergonomic Assembly

Custom rotating positioning fixtures are the core feature of this system. Operators can rotate the engine to any required angle, eliminating awkward assembly postures, speeding up fitting work and lowering labor fatigue.

Heavy-Duty Lifting Assistance by Jib Cranes

Yellow cantilever jib cranes with electric hoists are arranged alongside the production line. They assist lifting and moving heavy engine blocks and assemblies, reducing manual heavy lifting and improving workshop safety.

High Precision Torque Control System

The assembly line integrates intelligent tightening systems. It delivers repeatable torque accuracy to ensure all bolts meet technical specifications, improving the stability and reliability of finished motorcycle engines.

Flexible Modular Layout

Modular workstation design supports flexible production. The line can be adjusted to assemble different engine displacements and engine types, adapting to mixed batch production and changing order requirements for motorcycle manufacturers.

Main Assembly Workflow

Engine Block Loading & Positioning Mount engine block onto rotating assembly jig and lock the fixture securely.

Crankshaft & Internal Component Assembly Install crankshaft, pistons, cylinder assemblies and internal gaskets.

External Parts & Accessories Fitting Fit covers, manifolds and all external auxiliary components.

Precision Torque Tightening Complete standardized bolt fastening with intelligent torque tools.

Lubricant Filling & Leakage Inspection Fill engine lubricant and carry out comprehensive sealing checks.

Engine Running Test & Quality Audit Start bench testing to verify engine performance. Inspect appearance and functional indicators. Qualified engines are taken offline and packaged. Empty jigs circulate back for the next production cycle.

Application Scope

• Mass assembly of motorcycle gasoline engines
• Mixed production of multi-displacement motorcycle power units
• Custom automated assembly systems for two-wheeler engine manufacturing
• EPC turnkey engine production workshop construction
