Automobile assembly line SKD CKD

Our automobile assembly line is a custom vehicle manufacturing production system specially developed for four-wheel low-speed electric vehicles. It supports both SKD semi-knockdown and CKD complete-knockdown assembly modes, helping factories complete body assembly, chassis matching, battery and motor installation, interior fitting and finished vehicle offline inspection for compact low-speed electric vehicles.

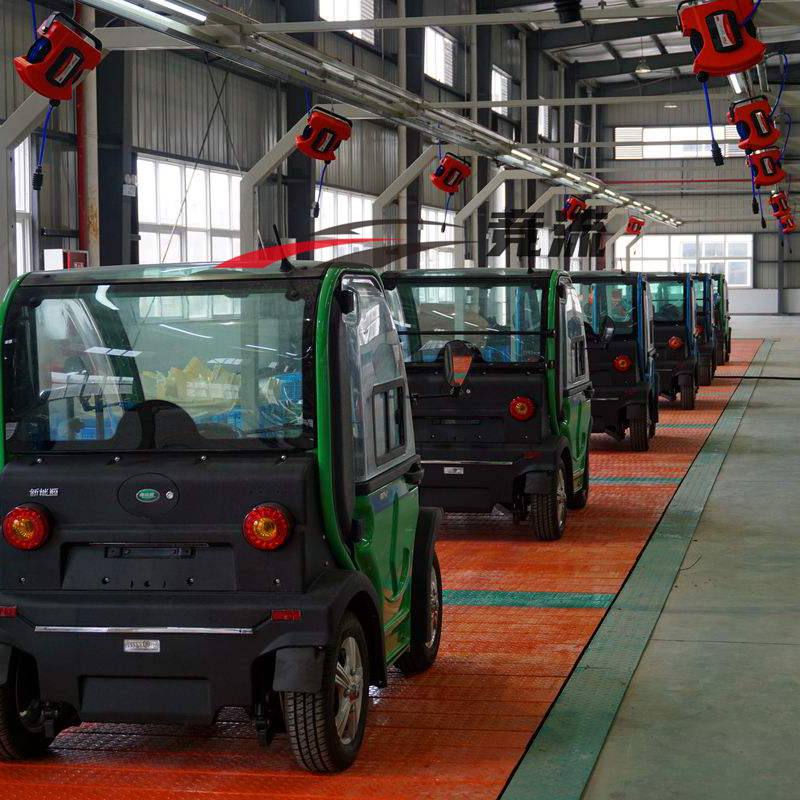

This set of workshop photos shows two core sections of the production line. The first view presents the ground assembly track. Low-speed electric vehicles are positioned on the floor conveyor line, while red overhead pneumatic tool balancers are mounted along the overhead steel frame. The hanging pneumatic tools provide convenient torque fastening for component assembly at each workstation. The second image features the overhead chain conveying section fitted with yellow lifting jigs. The overhead fixture suspends the whole vehicle body off the ground, enabling easy access for underbody chassis assembly and reducing heavy manual lifting. The combination of overhead hanging transport and ground assembly tracks creates a complete three-dimensional assembly workflow.

Production Line Overview & Process Composition

This production system covers the full assembly workflow of four-wheel low-speed electric vehicles: body loading, overhead hoisting for body-chassis mating, motor and battery pack installation, wiring harness routing, interior and exterior trim assembly, wheel mounting, fluid filling, vehicle commissioning and final off-line inspection. The flexible line design adapts to multiple low-speed EV variants, including elderly mobility vehicles, micro commuter cars, sightseeing vehicles, park shuttles, patrol cars and golf carts.

Body & Chassis Mating

At the core station, overhead yellow lifting frames hoist the vehicle body to complete mating with the pre-assembled chassis. The overhead conveying system simplifies body and chassis alignment and reduces labor intensity. Operators install drive motors, battery packs and suspension assemblies to build the vehicle’s power and running system.

Powertrain & Electrical Assembly

Workers mount drive motors, battery packs, controllers and wiring harnesses. Standardized assembly procedures ensure stable electrical connections, which is critical for the safe operation of low-speed electric vehicles. Overhead pneumatic balancers at each workstation help operators tighten fasteners efficiently.

Interior & Exterior Trim Fitting

Operators fit seats, instrument panels, doors, lamps and exterior body panels. The modular workstation design supports fast model switching and mixed production under SKD and CKD assembly modes.

Finished Vehicle Debugging & Inspection

After assembly, every vehicle undergoes comprehensive offline testing. Technicians verify driving performance, braking response and all electrical functions. Vehicles that fail inspection will go through rework before final delivery.

Core Advantages of Automobile Assembly Line

Dual SKD & CKD Assembly Support

The system supports semi-knockdown and complete-knockdown assembly. It can be configured according to customers’ factory conditions, ideal for local assembly projects using imported knockdown parts or locally manufactured components.

Combined Overhead Lifting & Ground Track Conveying

The production system adopts dual conveying solutions. Overhead chain lifting frames handle vehicle bodies for under-chassis assembly, while ground tracks carry semi-finished vehicles through trim and testing stations. Overhead pneumatic tool balancers are deployed at every workstation to boost assembly efficiency.

Highly Flexible Modular Layout

Modular workstation construction allows layout adjustment for model updates or production volume scaling. Mixed production of multiple low-speed EV models is available to cover sightseeing, patrol, cargo and elderly mobility vehicles.

Real-Time Intelligent Production Management

The integrated production management system monitors production progress in real time. It records assembly data for each vehicle, tracks equipment status and helps managers control production tact, quality and material consumption.

Full Turnkey Project Service

We provide end-to-end services, including project planning, workshop layout design, equipment manufacturing, on-site installation, commissioning and operator training.

Main Assembly Workflow

Vehicle Body Loading & Overhead Fixture Positioning Hang the vehicle body on overhead lifting transport frame.

Chassis Mating & Powertrain Installation Complete body-chassis combination; mount motor, battery and suspension assemblies.

Wiring Harness & Electrical Component Assembly Install controllers, cables and all electrical parts.

Interior & Exterior Trim Fitting Fit instrument panels, seats, doors, lights and exterior body accessories.

Vehicle Commissioning & Function Testing Debug power system, braking and all vehicle functions.

Final Quality Audit & Offline Run full vehicle inspection. Qualified low-speed electric vehicles are taken off the assembly line. Empty lifting frames circulate back for cyclic production.

Application Scope

• SKD & CKD assembly for four-wheel low-speed electric vehicles
• Production lines for micro commuter EV, elderly mobility vehicles, sightseeing vehicles and park shuttles
• Assembly systems for patrol cars, golf carts and small electric sanitation / cargo vehicles
• Custom turnkey workshop construction for low-speed electric vehicle manufacturing
